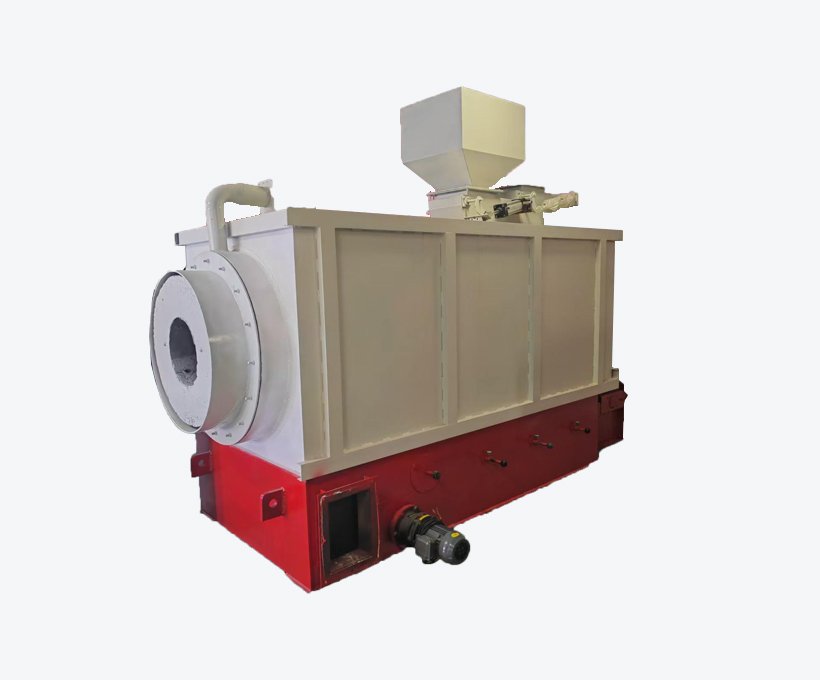

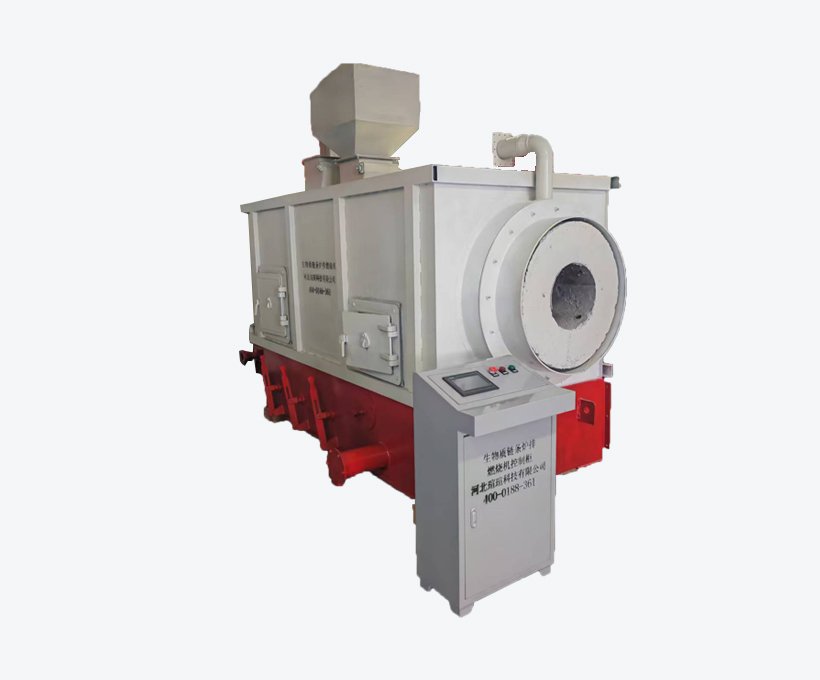

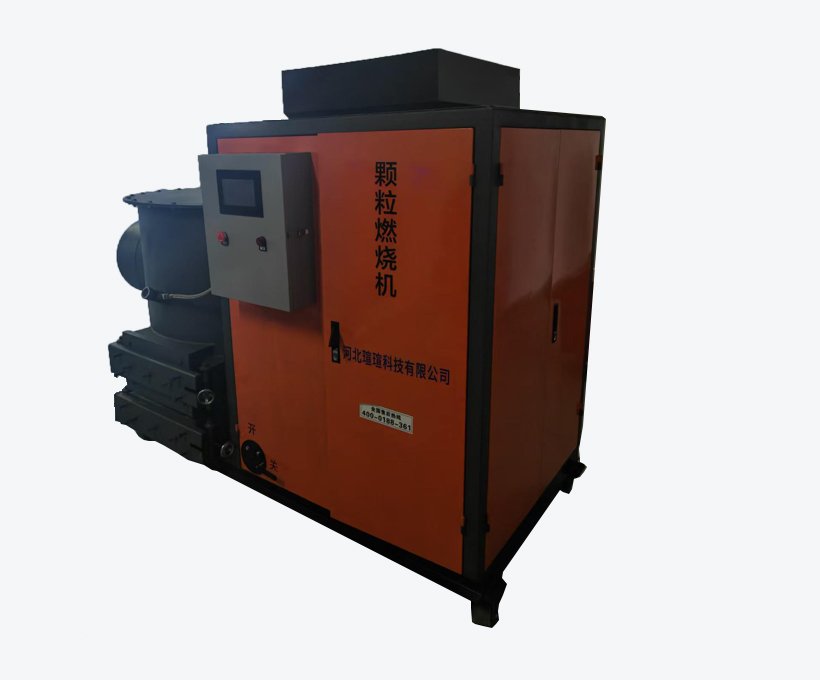

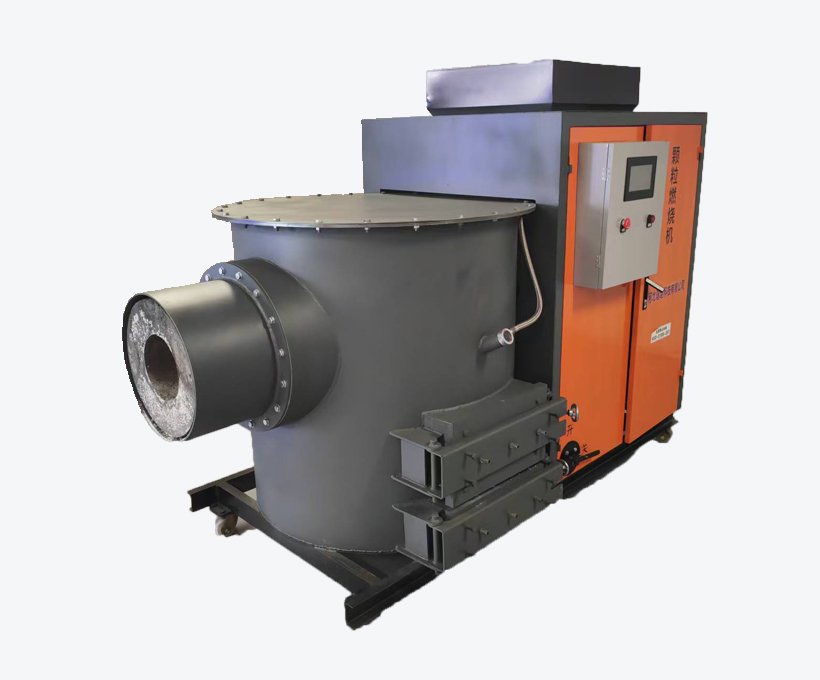

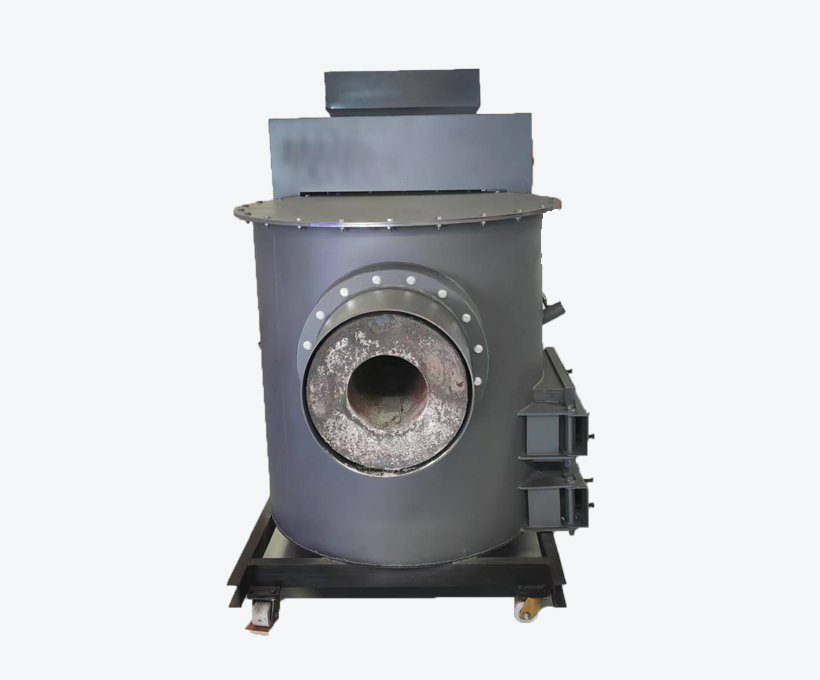

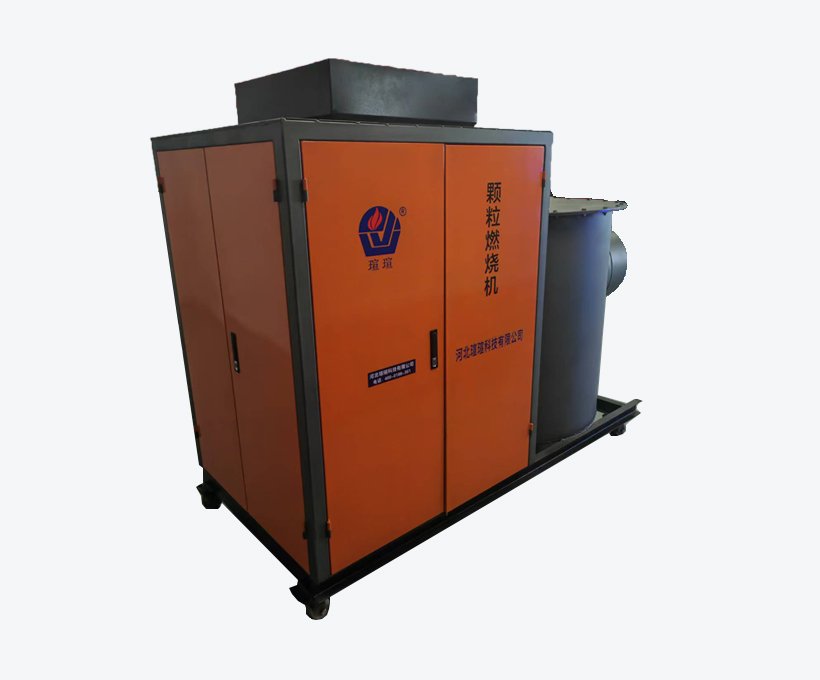

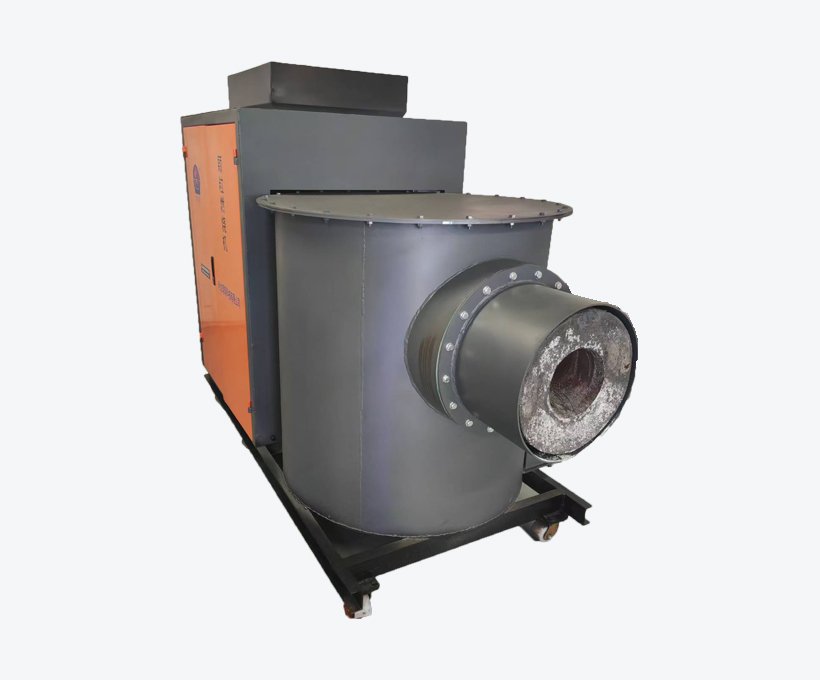

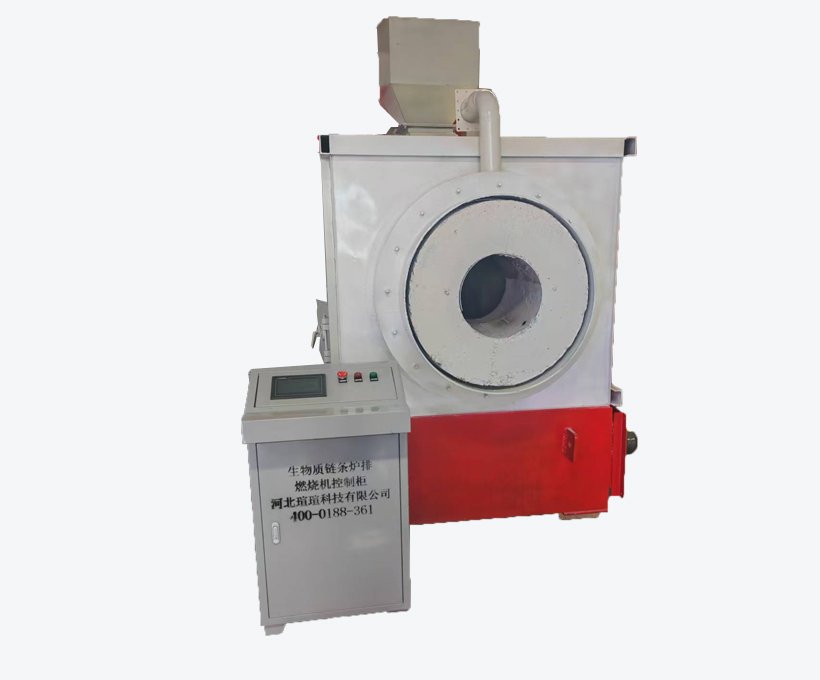

Description of biomass burner:
Biomass burner uses biomass wood pellets as fuel, and the biomass pellets are sent into the combustion chamber for direct combustion through an automatic feeding device, and the heat energy after combustion can be directly supplied to the boiler, powder coating, die casting, clothing, hotel, heat treatment and other heating equipment. The product adopts semi-gasified composite combustion technology, which has the characteristics of reasonable structure, automatic feeding, high thermal efficiency, full combustion, low sulfur content, no pollution, low emissions, simple and convenient installation, and small space occupation. The operating cost of biomass burners is low, which can save 30%-60% of operating costs compared to fuel oil/gas burners.
Features of biomass burner:
1. Low cost of use: easy fuel collection and low cost. The operating cost of wood chip fuelis only half of that of biomass pelletfuel
2. High combustion efficiency. More than 20 years of biomass combustion experience, no black smoke, low SO2 and NOx.
3. Long service life: The gasification chamber adopts 1# super high-temperature resistant material for one -time casting without any
joints, and is produced through a unique manufacturing process. It can wthstand high temperatures above 16oooc, and has the
characteristics of high hardness and erosion resistance. The service life is more than 8 years
4. High degree of automation automatic feeding, automatic switching between large and smallfre, automatic start/stop fumace. The
operation is simple and convenient, without special supervision
Advantages of biomass burner:
1. High-efficiency and energy- saving. Renewable biomass pellet fuel is used as energy source, the using cost is low. and the operating cost is 30%-60% lower than that of fuel oil/gas.
2. High themal efficiency. semi-gasifed suspension combustion wth tangent a swirl fow air distribution design. low temperature stagedcombustion, burnout rate of more than 98%, and furnace temperature of more than 1200 °C.
3. Stable and reliable: Micro-postive pressure operation. silo isolation transportation method, no tempering and de-fring phenomenon.has applied for national invention patent.
4. Low-carbon environmental protection low smoke. sufur and ntrogen emissions, and nearly zero carbon dioxide emissions accordwith smoke emission requirements.
5.Simple operation easy installation. automatic feeding. simple operation, less workoad. large silo capacity (larger capacity silo can becustomized). The feeding can be run for 3-12 hours at a time, only need to fill the bin in time, only one person on duty is OK.
Biomass pellet burners are widely used in spray drying lines, casting heat treatment, annealing furnaces, aluminum rod heating furnaces, clothing, hotels, melting boilers, industrial furnaces, greenhouses, steam boilers, hot water boilers, thermal oil boilers, hot air Furnace, drying equipment, paint, wood, gravel, leather, clothing, ceramics, paper products, food drying equipment, etc., for heating equipment use and energy-saving transformation.
